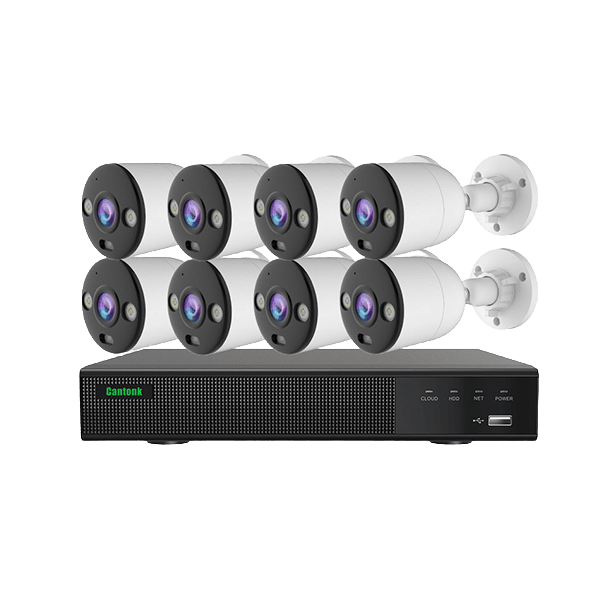

LP8ME88B1
Engineered for exceptional performance, this camera captures crisp, detailed images in changing light and challenging conditions. Its advanced imaging technology delivers reliable monitoring, smooth video, and accurate color, while intelligent features help detect important activity. Built for dependable, around-the-clock operation, it brings confidence and clarity to every security installation.
| Model NO. | |
|---|---|
| Model NO. | LP8ME88B1 |
| Package | |
| NVR | NP08E |
| Camera | 8x CP8B1 |
| Cable | 8x 18m CAT5e Cable |
| Mouse | 1xUSB 2.0 Mouse |
| Hard disk | Optional |
| Adaptor | DC48V/1875mA |
| Package weight | 10.445kg |
| Camera Model | |
| Camera Model | CP8B1 |
| Camera | |
| Image Sensor | GC8613 1/2.7 CMOS |
| Resolution | 8MP |
| Compression | H.265 |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | YES |
| Lens | |
| Focus Length | 4mm or 2.8mm optional |
| Focus Control | Fixed(F=1.6) |
| Lens Type | Fixed(M12) |
| Pixels | 8MP |
| Night Vision | |
| Infrared LED/White LED | IR LED:120º (5050X2Pcs)/Warm Light LED: 120º (5050X2Pcs) |
| Infrared Distance | IR 30m, Warm light 30m |
| IR Status | Auto Control |
| IR Power On | Auto Control |
| Network | |
| Ethernet | RJ45 10M/100M adaptive Ethernet port |
| Protocol | TCP/IP,DHCP,DNS |
| ONVIF | N/A |
| P2P | N/A |
| POE | Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 3840*2160@20fps |
| Main Stream 2 | 2880*1620@20fps |
| Main Stream 3 | 2560*1440@20fps |
| Main Stream 4 | 1920*1080@20fps |
| Sub Stream 1 | 768*432@20fps |
| IE Brower | N/A |
| Smart Phone | N/A |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror |
| Corridor Pattern | Support |
| HDR | Support |
| Motion Detection | Support |
| AI Event | Human detection, Vehicle detection, Pet detection |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR |
| Language | N/A |
| Interface | |
| Audio | Built-in MIC/Built-in speaker |
| Alarm | N/A |
| SD Card Slot | N/A |
| RS485 | N/A |
| General | |
| Housing | Metal , IP67 |
| Anti-cut Bracket | YES |
| IR Cut Filter | YES |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | POE IEEE 802.3af, DC12V⎓1A |
| Dimension | 73×73×167mm |
| Weight | 446g |
| NVR Model | |
| NVR Model | NP08E |
| System | |
| Main Processor | Quad Cortex A53 |
| Operating System | Embedded LINUX |
| Video | |
| Input | 8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF |
| VG Output | 1920*1080/1280*1024/1280*720/1024*768 |
| HD Output | 4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/102 4*768 |
| Audio | |
| Input | N/A |
| Output | 1 Port RCA |
| Audio sample rate | 8 kHz |
| Audio Compression standard | AAC |
| Alarm | |
| Sensor Input | N/A |
| Output | N/A |
| Motion Detection | 8 Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Display | |
| HD Output | 4K(3840*2160)/2K(2560*1440@30Hz)/2K(2560*1440@60Hz)/1920*1080/1280*1024/1280*720/102 4*768 |
| VGA | 1920*1080/1280*1024/1280*720/1024*768 |
| Display Split | 1/4/8/9 |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Recording | |
| Video Compression | H.265+,H.265,H.264+,H.264 |
| Resolution | 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) |
| Record Rate | PAL :8MP@8CHx25fps,6MP@8CHx25fps,5MP@8CH×25fps,4MP@8CHx25fps,3MP@8CH×25fps,1080P@8CH×25fps NTSC: 8MP@8CHx30fps,6MP@8x30fps,5MP@8CH×30fps,4MP@8CHx30fps,3MP@8CH×30fps,1080P@8CH×30fps |
| Record Mode | Manual\Timing\Motion\Intelligent |
| Playback & Backup | |
| Local Sync Playback | 2CH 8MP@30fps,3CH 5MP@30fps, 4CH 4MP@30fps,4CH 1080P@30fps |
| Decode Capability | 1080P(1920x1080)@240fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Channel, Manual, Timing, Motion Detection,Human,Vehicle,Pet |
| Playback Functions | Play, Pause, Stop, Speed down,Speed up,Frame Forward,Audio,Clip |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1×RJ45 10/100/1000Mbps 8×RJ45 10/100Mbps POE, POE Total Power Output≤ 72W |
| Network Functions | TCP/IP,HTTP,SMTP,DHCP,FTP,DDNS,RTP,RTSP,RTCP,NTP,UPnP |
| Onvif | N/A |
| Web Browser | IE8-11, Google Chrome, Firefox , Mac Safari |
| CMS Software | Support Windows 7/ Windows 8/Windows 10/MAC OS |
| Cloud Support(P2P) | Yes |
| Smart Phone | iPhone, Android |
| POE | 8 x Independent 100Mbps POE Network Interfaces |
| WIFI | N/A |
| Storage | |
| Interface Type | 1 SATA Hard Disk Interface (2.5"/3.5" SATA) |
| Capacity | Up to 10TB capacity |
| eSATA | N/A |
| General | |
| Language | Simplified Chinese, English (US), English (UK), Russian, German, French, Spanish, Italian |
| USB Interface | 2 USB 2.0 Interfaces |
| RS485 | N/A |
| Power consumption | DC48V/1875mA ≤15W (Without Hard Disk and POE) |
| Working Environment | -10~55℃/10~90% |
| Dimension(W×D×H) | 260*239*46mm |
| Weight | 1.4kg (including 1Pcs 2TB hard drives) |
