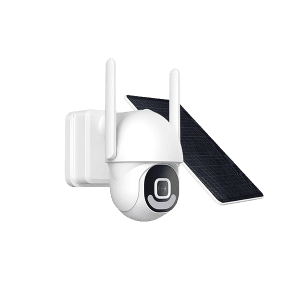

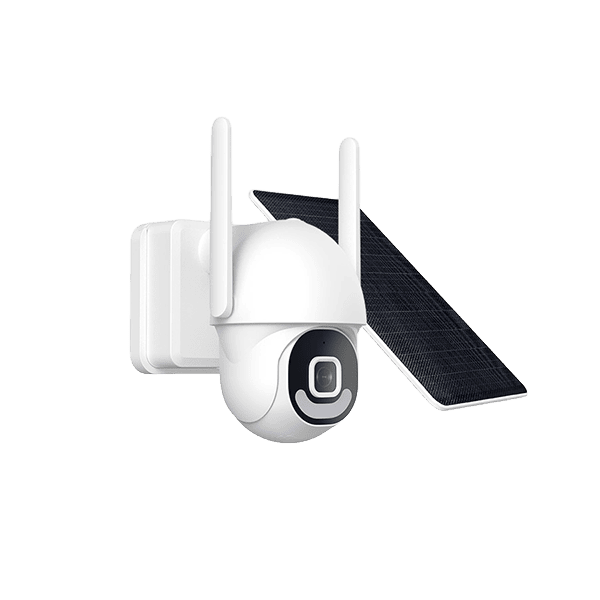

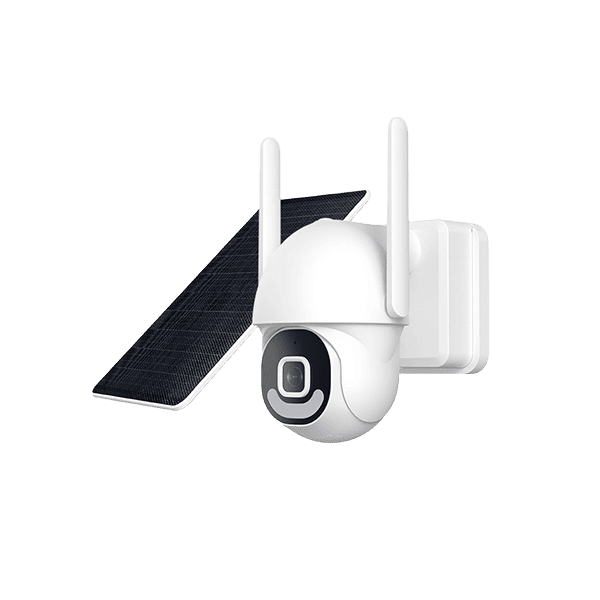

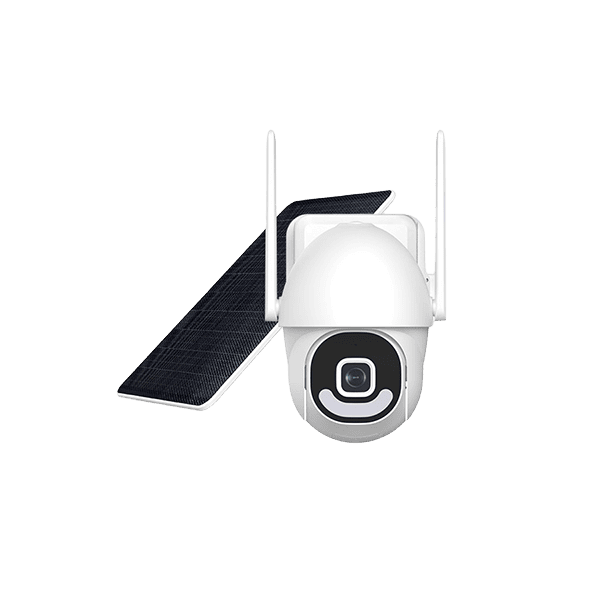

LP5Q
Engineered for exceptional performance, this camera captures crisp, detailed images in changing light and challenging conditions. Its advanced imaging technology delivers reliable monitoring, smooth video, and accurate color, while intelligent features help detect important activity. Built for dependable, around-the-clock operation, it brings confidence and clarity to every security installation.
| Camera Model | |
|---|---|
| Camera Model | LP5Q |
| Camera | |
| Product name | AOR solar outdoor PTZ camera |
| Shell material | Plastic (PC+ABS V0 fire resistant) |
| Parameter configuration | |
| Primary stream resolution | 2880*1624 |
| Substream resolution | 1280*720 |
| Focal Length & FOV | Fixed focus 4MM, horizontal field of view: 80° Vertical field of view: 42° Diagonal field of view: 93° |
| Illumination | |
| Fill type | Double light fill light |
| Number of fill lights | 4 white light + 4 infrared |
| Infrared wavelength | 850nm |
| Fill distance | 15m |
| Network | |
| Wireless communication | 2.4G Wi-Fi |
| Client | SV360 APP (Android/iOS/Hongmeng support) |
| Interfaces/Buttons | |
| Built-in microphone | Support,full duplex voice intercom |
| Built-in speaker | Support,full duplex voice intercom |
| SD card storage | Supports a maximum of 512GB |
| Reset key | Support hardware reset |
| Power switch | Power on and off DIP switches |
| Smart function | |
| Smart Feature | Mobile detection, humanoid detection, vehicle detection, non-motor vehicle detection, support linkage sound alarm, red and blue light warning |
| Video Bitrate | Adaptive Bitrate |
| Audio Bitrate | Adaptive Bitrate |
| Image | |
| Maximum Image Size | Maximum 2880x1624, supports dual stream |
| Frame Rate | Maximum 15fps |
| Image Flip | Support |
| Backlight Compensation | Support |
| General Specifications | |
| Operating temperature and humidity | -10℃ to +50℃, ≤RH95% no condensation |
| Power supply mode | Battery powered + solar charging |
| Power dissipation | Sleep power consumption: 4.7mW/ Typical power consumption: 175mW/ Peak power consumption: 2.8W |
| Power interface type | Type-C_DC 5V 2A |
| Package size | Length 290× width 200× height 178mm |
| Body weight of equipment | 630g (ball machine body) |
| Packing weight | 1515g |
| Waterproof and dustproof | IP65 |
