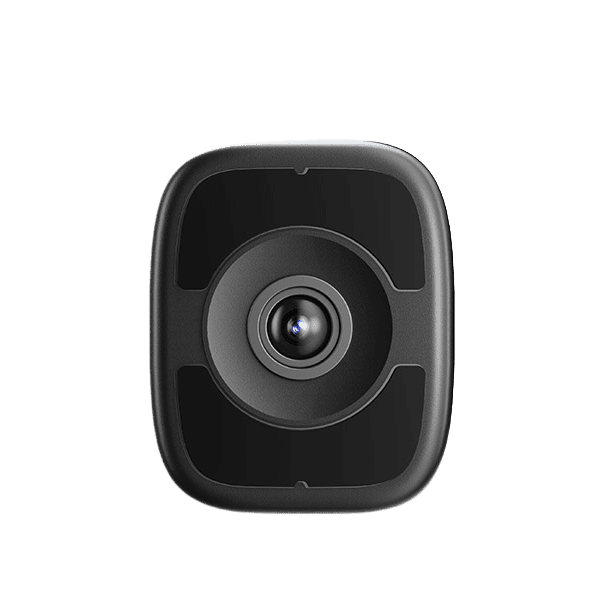

CDK1-W1X5-B
Engineered for exceptional performance, this camera captures crisp, detailed images in changing light and challenging conditions. Its advanced imaging technology delivers reliable monitoring, smooth video, and accurate color, while intelligent features help detect important activity. Built for dependable, around-the-clock operation, it brings confidence and clarity to every security installation.
| Camera | |
|---|---|
| Sensor Type | 1/2.9" CMOS |
| Shutter | Adaptive Shutter |
| Lens | 3.6mm@F1.0, Diagonal Field of View: 90°, Horizontal: 76°, Vertical: 40° |
| Pan/Tilt Rotation Angles | Horizontal 0°-350°, Vertical 0°-90° |
| Day/Night Mode | Full-color night vision |
| Digital Noise Reduction | 3D Digital Noise Reduction |
| Wide Dynamic Range | / |
| Lens Interface Type | M12 |
| Interfaces/Buttons | |
| Storage Interface | Micro SD Card (up to 512GB) |
| Power Interface | Type-C Interface |
| Reset Button | 1 |
| Power Switch | 1 |
| Compression Standards | |
| Video Compression Standards | H.265/H.264 |
| Video Bitrate | Adaptive Bitrate |
| Audio Bitrate | Adaptive Bitrate |
| Video | |
| Maximum Video Size | Maximum 2880x1620, supports dual stream |
| Frame Rate | Maximum 15fps |
| Image Flip | Support |
| Backlight Compensation | Support |
| Software Features | |
| Smart Alarm | Person/Vehicle Detection |
| Two-Way Audio | Support |
| Sound Alarm | Support |
| Wireless Parameters | |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax，WiFi 6，Support 2.4G/5G dual-band |
| Bluetooth | Bluetooth v5.4 |
| General Specifications | |
| operating temperature and humidity | -10℃~55℃, Humidity less than 95% (non-condensing) |
| power supply | Type-C Charging Port DC 5V/1A |
| dimensions (mm) | 55×67×36mm |
| weight | 60g (bare unit) |
