JA12BA1
Engineered for exceptional performance, this camera captures crisp, detailed images in changing light and challenging conditions. Its advanced imaging technology delivers reliable monitoring, smooth video, and accurate color, while intelligent features help detect important activity. Built for dependable, around-the-clock operation, it brings confidence and clarity to every security installation.
| Model NO. | |
|---|---|
| Model NO. | JA12BA1 |

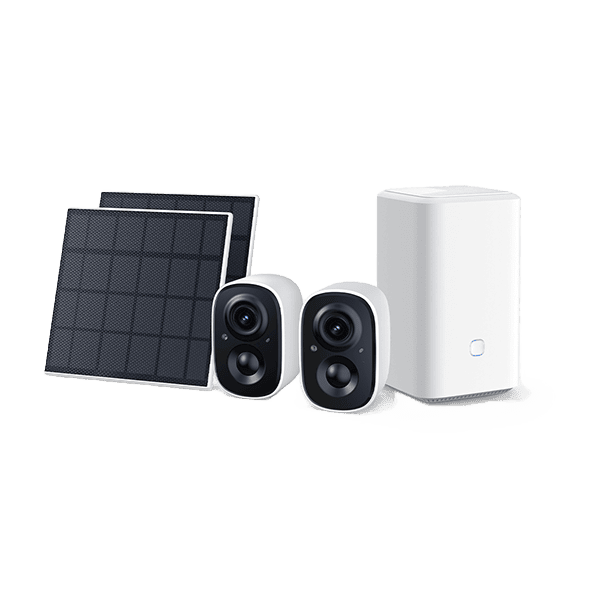

| Package | |
| Hub | 1x SV Home Hub |
| Camera | 2 x LP5Q-A1 |
| Package Dimensions | L 352×W 195×H 138mm |
| Package weight | 1.95kg |
| System Package Weight | Package Weight +10% |

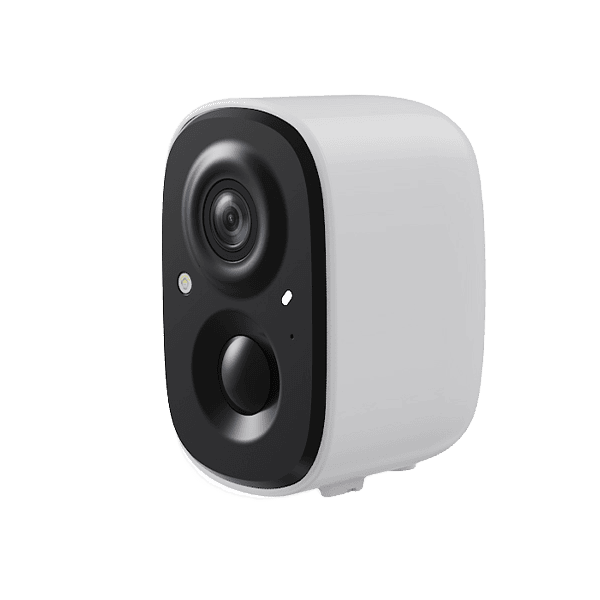

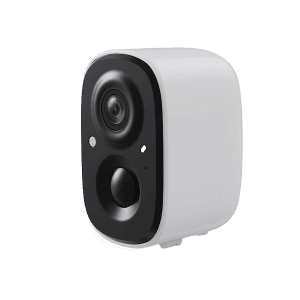

| Camera Model | |
| Camera Model | LP5B-A1 |
| Camera | |
| Product name | AOR Solar Wi-Fi PT camera |
| Shell material | Plastic (PC+ABS V0 fire resistant) |
| Parameter configuration | |
| Primary stream resolution | 2880*1624 |
| Substream resolution | 1280*720 |
| Focal Length & FOV | Fixed focus 2.8MM, horizontal field of view: 95° Vertical field of view: 53° Diagonal field of view: 110° |
| Illumination | |
| Fill type | Dual-Light (White + Infrared) |
| Number of fill lights | 1 white light + 8 infrared |
| Infrared wavelength | 850nm |
| Fill distance | 15m |
| Network | |
| Wireless communication | 2.4G Wi-Fi |
| Client | SV 360（Supports Android/iOS/HarmonyOS） |
| Interfaces/Buttons | |
| Built-in microphone | Support,full duplex voice intercom |
| Built-in speaker | Support,full duplex voice intercom |
| SD card storage | Supports a maximum of 512GB |
| Reset key | Supports hardware reset (reset hole) |
| Power switch | Press and hold the reset button for 10 seconds to shut down, press and hold for 2 seconds to power on |
| Smart function | |
| Smart Feature | Motion Detection, Human Detection, Vehicle Detection, Non-Motorized Vehicle Detection, Supports Linked Sound Alarm & Red/Blue Light Warning |
| Image | |
| Maximum Image Size | Maximum 2880*1624, supports dual stream |
| Frame Rate | Maximum 15fps |
| Image Flip | Support |
| Backlight Compensation | Support |
| General Specifications | |
| Operating temperature and humidity | -10℃ to +50℃, ≤RH95% no condensation |
| Power supply mode | Battery powered + solar charging |
| Power interface type | Type-C_DC 5V 2A |
| Package Dimensions | L 59.1× W 64.6× H 91.0mm |
| Body weight of equipment | 215g (ball machine body) |
| Waterproof and dustproof | IP65 |

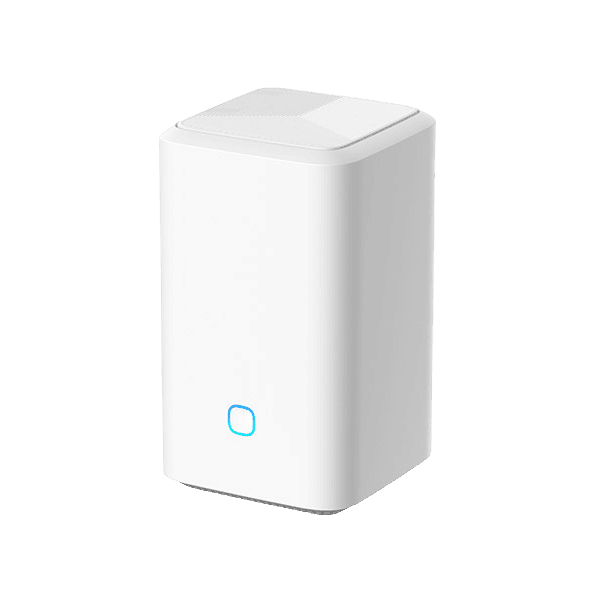

| Hub Model | |
| Model | SH0J-A1 |
| SV Home Hub | |
| Product Name | SV Home Hub Intelligent Control Termina |
| Housing Material | PC+ABS Plastic (V0 Fireproof Grade) |
| Chip | |
| Flash | 16MB NOR Flash |
| DDR | DDR3 2Gb |
| EMMC | 32GB eMMC |
| Video | |
| Network Video Input Capacity | 8-channel IPC Input (Max) |
| Supported | LP5Q-A1、LP5B-A1 |
| Network | |
| WiFi | 2.4GHz /5.8Ghz Wi-Fi 6 |
| Bluetooth | BT 5.2 |
| Interfaces | |
| Speaker | Built-in 1 Speaker |
| SD Card | 512G*1 MAX |
| Reset | Support hardware reset |
| Pairing keys | Support one-click pairing |
| Status indicator | Red and blue indicator light |
| LAN | 1*RJ45 10/100M LAN |
| Smart | |
| Alarm | Multiple alarm tones to choose from, supports custom alarm sounds. |
| General | |
| Operating Temperature/Hu midity | -10℃ to +50℃, ≤RH95% no condensation |
| Power Supply | Mains Power (Continuous Supply) |
| Power | Peak: <3W |
| Power Interface | DC 12V/1A |
| Mobile client | SV 360 (Android/iOS/HarmonyOS) |
| Web | PC：Windows、Mac OS |
| Product Dimensions | L95*W95*H161mm |
| Body weight of equipment | ≈350g |
