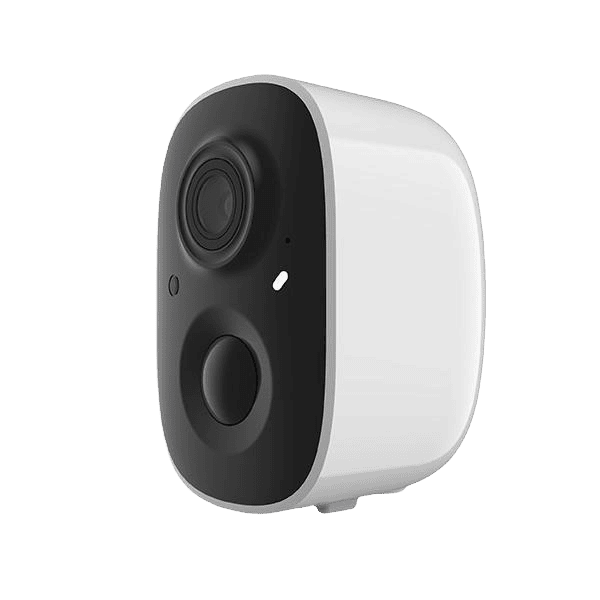

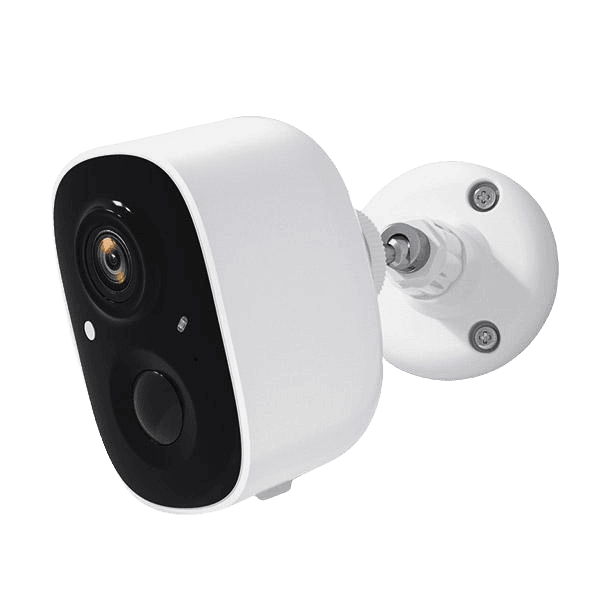

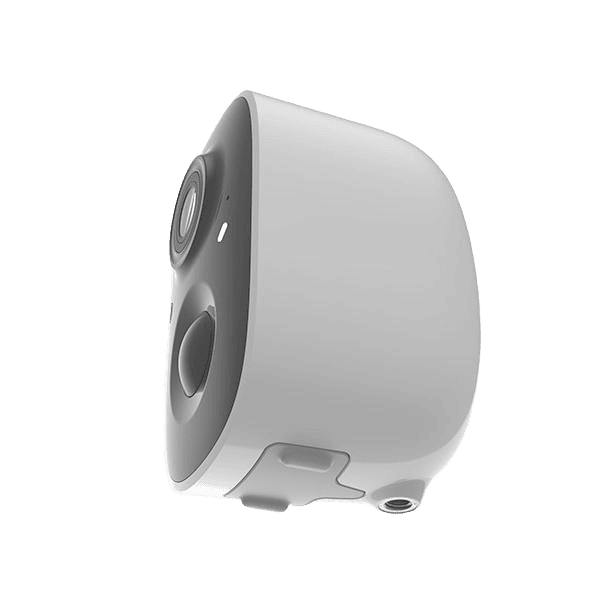

LP5B-A1
Engineered for exceptional performance, this camera captures crisp, detailed images in changing light and challenging conditions. Its advanced imaging technology delivers reliable monitoring, smooth video, and accurate color, while intelligent features help detect important activity. Built for dependable, around-the-clock operation, it brings confidence and clarity to every security installation.
| Camera Model | |
|---|---|
| Camera Model | LP5B-A1 |
| Camera | |
| Product name | AOR Battery Wi-Fi Camera |
| Shell material | Plastic (PC+ABS V0 fire resistant) |
| Parameter configuration | |
| Primary stream resolution | 2880*1624 |
| Substream resolution | 1280*720 |
| Focal Length & FOV | Fixed Focus 2.8MM ， Horizontal FOV: 95 ° Vertical FOV: 53 ° Diagonal FOV:110° |
| IR-CUT | Supported |
| Aperture Type | Fixed Aperture |
| Illumination | |
| Fill type | Dual-Light (White + Infrared) |
| Number of fill lights | 1 White LEDs + 8 Infrared LED |
| Infrared wavelength | 850nm |
| Fill distance | 15m(Variable according to environmental changes) |
| Network | |
| Wireless communication | 2.4G Wi-Fi |
| Client | SV 360 APP（Supports Android/iOS/HarmonyOS） |
| Interfaces/Buttons | |
| Built-in microphone | Support,full duplex voice intercom |
| Built-in speaker | Support,full duplex voice intercom |
| SD card storage | Supports a maximum of 512GB |
| Reset key | Hardware Reset Supported |
| Power switch | Press and hold the switch for 10 seconds to turn off, 3 seconds to turn on |
| Smart function | |
| Smart Feature | Motion Detection, Human Detection, Vehicle Detection, Non-Motorized Vehicle Detection, Supports Linked Sound Alarm & Red/Blue Light Warning |
| Video Bitrate | Adaptive Bitrate |
| Audio Bitrate | Adaptive Bitrate |
| Image | |
| Maximum Image Size | Maximum 2880*1624, supports dual stream |
| Frame Rate | Maximum 15fps |
| Image Flip | Support |
| Backlight Compensation | Support |
| General Specifications | |
| Operating temperature and humidity | -10℃ to +50℃, ≤RH95% no condensation |
| Power supply mode | Battery powered + solar charging |
| Battery Capacity | 3.7V*5200mAH，19.2Wh |
| Power interface type | Type-C_DC 5V 2A |
| Package size | Length 190× width 80× height 80mm |
| Body weight of equipment | 215g (ball machine body) |
| Packing weight | 423g |
| Waterproof and dustproof | IP65 |
