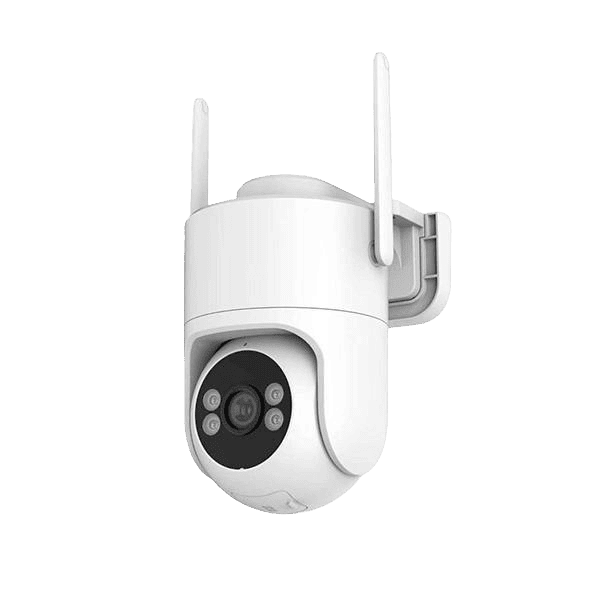

CDQ1-W1X8
Engineered for exceptional performance, this camera captures crisp, detailed images in changing light and challenging conditions. Its advanced imaging technology delivers reliable monitoring, smooth video, and accurate color, while intelligent features help detect important activity. Built for dependable, around-the-clock operation, it brings confidence and clarity to every security installation.
| Camera | |
|---|---|
| Sensor Type | 1/3" CMOS |
| Shutter | Adaptive Shutter |
| Lens | 3.6mm@F2.4, Diagonal Field of View: 80°, Horizontal: 69°, Vertical: 37° |
| Pan/Tilt Rotation Angles | Horizontal 0°-355°, Vertical 0°-90° |
| Day/Night Mode | ICR Infrared Filter |
| Digital Noise Reduction | 3D Digital Noise Reduction |
| Wide Dynamic Range | / |
| Lens Interface Type | M12 |
| Interfaces/Buttons | |
| Storage Interface | Micro SD Card (up to 512GB) |
| Power Interface | Type-C Interface |
| Reset Button | 1 |
| Power Switch | / |
| Compression Standards | |
| Video Compression Standards | H.265/H.264 |
| Video Bitrate | Adaptive Bitrate |
| Audio Bitrate | Adaptive Bitrate |
| Video | |
| Maximum Video Size | Single Camera up to 3840x2160, supports dual stream |
| Frame Rate | 15fps |
| Image Flip | Support |
| Backlight Compensation | Support |
| Software Features | |
| Smart Alarm | Motion/Person Detection |
| Two-Way Audio | Support |
| Pan/Tilt Presets | Support, up to 6 presets |
| Auto Tracking | Support |
| Voice Call | / |
| Wireless Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 2.4G supports 20MHz |
| Security | WPA/WPA2/WPA3，WPA-PSK/WPA2-PSK |
| General Specifications | |
| operating temperature and humidity | -10℃~55℃, Humidity less than 95% (non-condensing) |
| protection level | / |
| power supply | DC 5V/2A |
| infrared illumination distance | 20 meters (varies with environment) |
| dimensions (mm) | Φ81×133mm |
| weight | 550g (bare unit) |
